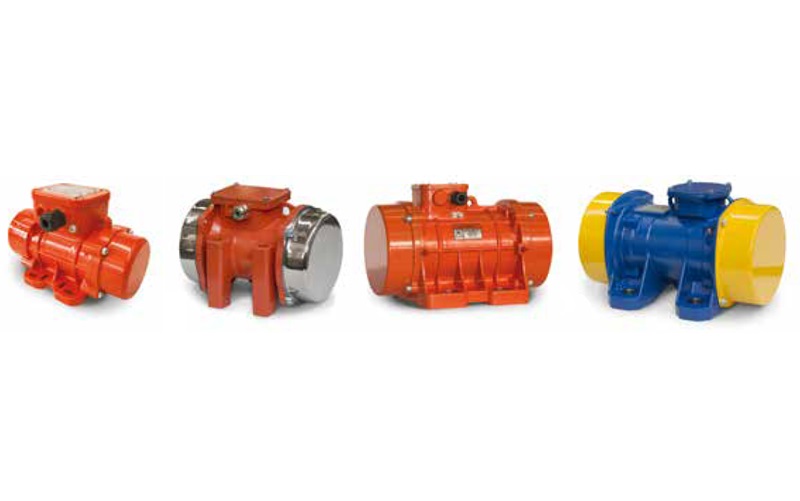

External Electric Vibrator

Electric vibrators for concrete consolidation - foot version.

Applications Concrete Placement

Industries Civil Infrastructure, Commercial Services

DUTY CYCLE Continuous S1
MULTIVOLTAGE 3ph 42V - 3ph 230/400V (* voltage tolerance ± 10%)
FIXED FREQUENCY 50Hz and 200Hz
VARIABLE FREQUENCY 0÷100Hz
WORKING TEMPERATURE -10 °C / +40 °C
MAX NOISE LEVEL 85 dB(A) at 1 meter distance
MATERIAL Cast aluminum or iron
FINISHING Painted: A, B, C: orange RAL 2009; D: blue RAL 5010, yellow RAL 1003
CERTIFICATIONS Community Directives and subsequent modifications: 2006/42/EC - 2006/95/EC
Conformity verified according to the standard documents IEC 60034
OPTIONS Power cable
ACCESSORIES Fixing brackets:
CLW (Clamp for Wooden formworks); CLS (Clamp for Steel formworks).
